Roll Packaging Material Transparent Clear Nylon, Customized Reel Width and Length

Item No.: BPAFK5401K
● Leading Manufacturer ● Premium Quality ● Good Price
Product parameters
Place of Origin: China
Processing Technology: Biaxially-oriented
Price: Negotiable
Min. Order Q'ty: 2MTs (2,000kgs)
Delivery Lead: 25 Days
Supply Ability: 1,800MTs/month
Payment Terms: T/T, L/C
Certification: FDA, RoHS, REACH, CER, EC
INQUIRY
Description → Specifications & Data → Packaging & Shipping → FAQ & More
Clear Nylon is referred to as transparent BOPA Film, an abbreviation of Biaxially-oriented Polyamide Film, is made from raw material polycaprolactam which is also known as nylon 6 or PA6.
The material is melt in the special equipment and extruded into biaxially-oriented polyamide film at machine direction and transverse direction.

In view of the exceptional strength and barrier properties, BOPA film is widely used to daily usage chemicals, electronics, food freshening and medicine package, etc. However, it is barely used by itself, but laminated with other materials (such as PE, EVA, PET, CPP aluminum foil and paper, etc.) in order to get better comprehensive performance.
BOPA Films are especially ideal for packing of foods that deteriorate easily, frozen or cooked, vegetable, aquatic products, and medical machines, etc.

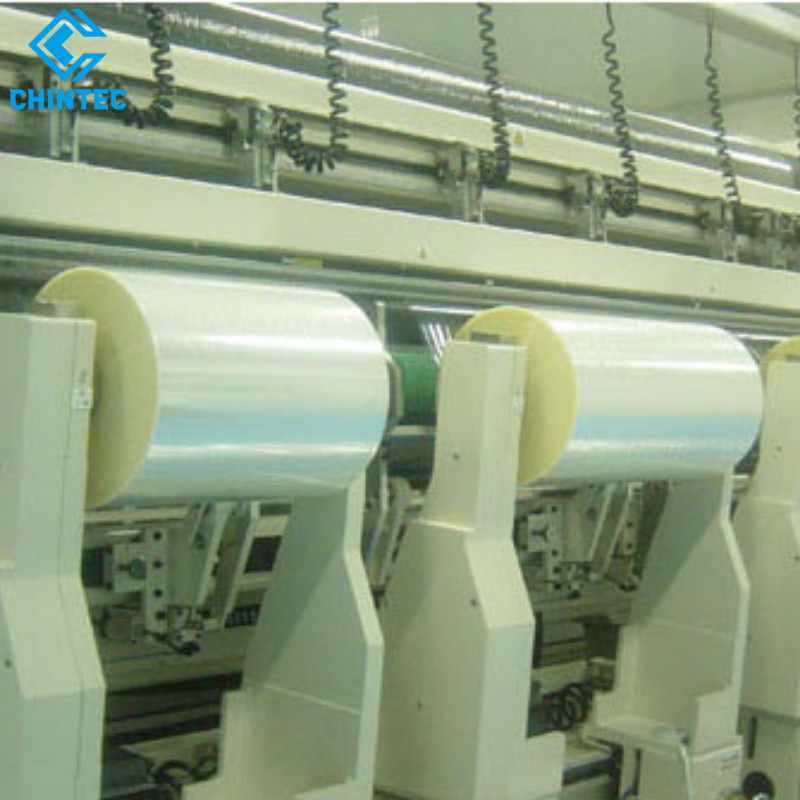

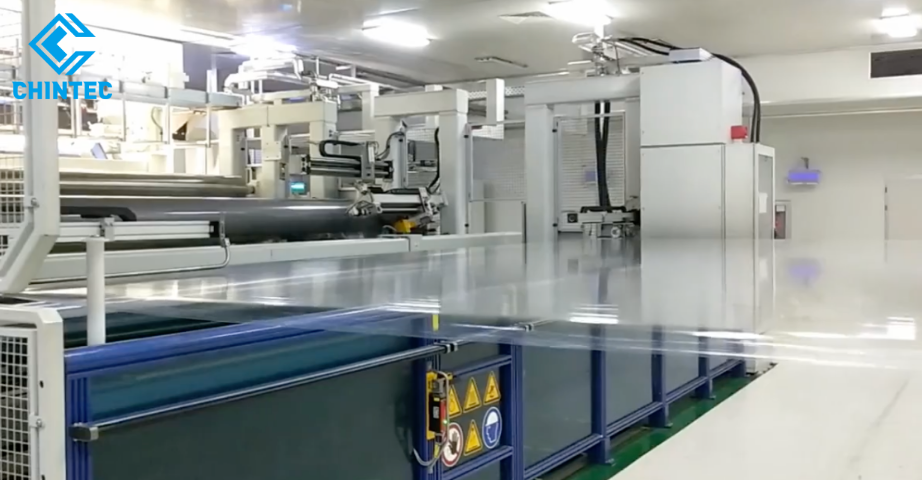

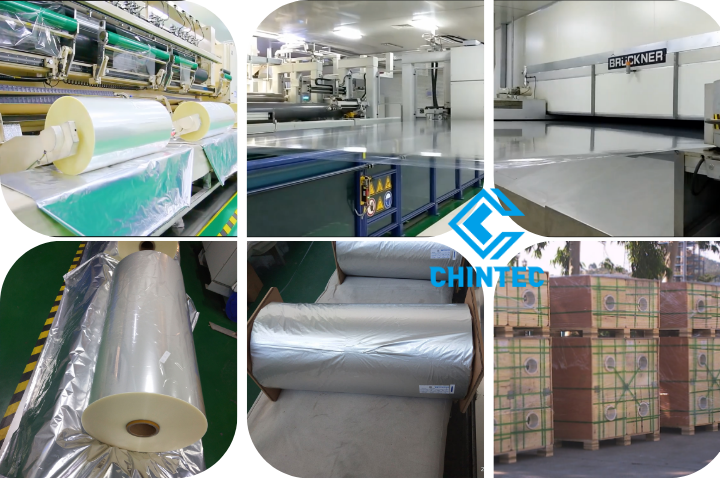

As a leading China professional BOPA Film manufacturer, we are powered with 6.6m-wide high-speed producing lines of Bruckner, holding monthly capacity 1,800 tons out of biaxial-orienting technologies of Sequential Stretching, Sequential State of  Art, Simultaneous Stretching and Linear Motor Simultaneous Stretching (LISIM), yielding thickness from 10micron to 30micron.

We are committed to serving a very good price BOPA Nylon film while maintaining high product quality.
The certificates our product granted include FDA, RoHS, REACH, CER, EC, and so on.





Specifications


Thickness: 10, 12, 13.5, 15, 20, 25, 30micron
Inner Core: 3" (76mm), 6" (152mm)
Reel Width: 300mm ~ 2100mm
Reel Length: 4000m ~ 32000m (upon thickness)
Joint: ≤ 1
Corona Treatment: one side or both sides, ≥ 52 dynes
Application: packaging, printing
Shelf Life:

12 months


Characteristics

● Excellent Strength, Puncture Resistance, and Impact Resistance
● Wide End-use Temperature Range (-60~150℃)
● Good Printability and Processibility
● High Transparency and Luster


● Outstanding Gas Barrier
● Easy Thermalformability
● Low Bowing & Good Flexibility
● High Resistance to Oils, Greases, Hydrocarbons


Storage Guide

1. Avoid direct sunlight or drenching
2. Avoid to impact

                                                 3. Store below 25℃
                                                 4. Humidity below 65% RH



Classifications of BOPA Nylon Film

Generic BOPA (Nylon) Film Retort BOPA (Nylon) Film
Download Technical Data Sheet Download Technical Data Sheet

Features Applications Features Applications
● Wide End-use Temperature Range (-60~150℃)
● Excellent Puncture & Impact Resistance
● Exceptional Burst & Tear Resistance
● Good Printability and Processibility
● Good Oils & Greases Resistance
● High Transparency & Luster

● Food
● Medical
● Electronic Material
● Daily Use Chemical
● Pharmaceuticals & Others


● Excellent Strength & Converting Performance
● Good Printability & Processibility
● Excellent Elongation




● Ham
● Chicken
● Sausage
● Other Fresh Food
● Retort Pouch Food Package
● 0 ~ 12 Colors Reversing Printing
Typical Thickness Typical Thickness
● 10, 12, 13.5, 15, 20, 25, 30micron ● 15, 20micron

EVOH-BOPA (Nylon) Film Printing BOPA (Nylon) Film
Download Technical Data Sheet Download Technical Data Sheet

Features Applications Features Applications
● High Hydro-carbons, Oils & Organic Resistance
● Excellent Flex-crack Resistance
● High Barrier Performance
● Extend Product Shelf Life
● Crystal Clear



● Pipes
● Hydro Fuel Cells
● Drugs Packaging
● Cosmetics Packaging
● Delicate Food Packaging
● Pharmaceutical Packaging
● Perishable Food Packaging
● Optimal Printability & Processibility
● Easy Laminating with Other Films
● Excellent Mechanical Properties
● Excellent Haze & Gloss





● Crisp & Snacks
● Pickled Vegetable
● Block Hard Cheese
● Aquatic Products
● Designer Balloons
● Frozen & Cooked Foods



Typical Thickness Typical Thickness
● 15micron ● 12, 19, 23, 25, 30micron

Metallized BOPA (Nylon) Film Linear Tear BOPA (Nylon) Film
Download Technical Data Sheet Download Technical Data Sheet

Features Applications Features Applications
● Excellent Permeability to Light, Water & Oxygen
● High Gloss Mirror Appearance
● Extend Food Shelf Life
● Higher Toughness
● Heat Sealable


● Balloons
● Snack Foods
● Christmas Tinsels
● Frozen Vegetable
● Electronic Materials
● Coffee, Tea & Candy
● Sterilized Medical Products
● Good Printing & Laminating Ability
● Good Linear-cut Property
● Double Sides Corona
● Excellent Strength
● High Gas Barrier
● Easy Opening


● Frozen Food
● Medical Products
● Daily Use Chemical
● Thermal & Retort Food





Typical Thickness Typical Thickness
● 10, 12, 15, 25micron ● 15micron

Matte BOPA (Nylon) Film Cold-forming BOPA (Nylon) Film
Download Technical Data Sheet Download Technical Data Sheet

Features Applications Features Applications
● Simultaneously Convenient Processability
● One or Two Sides Corona Treatment
● Excellent Optical Property
● Higher Tensile Strength
● Low Haze & Gloss
● Low COF
● Foodstuff Packaging
● Printing & Hot Stamping
● Prime Sensory Packaging
● Paper Printings Lamination
● High-end Compound Material
● High Barrier to Light, Water Vapour & Gas
● Sealable with Aluminum Lidding Foil
● Wide Range Color & Print Options
● Excellent Thermal Stability
● Excellent Formability

● Pharmaceutical Products
● Foodstuff Blister Packaging





Typical Thickness Typical Thickness
● 15micron ● 15, 20, 25, 30micron

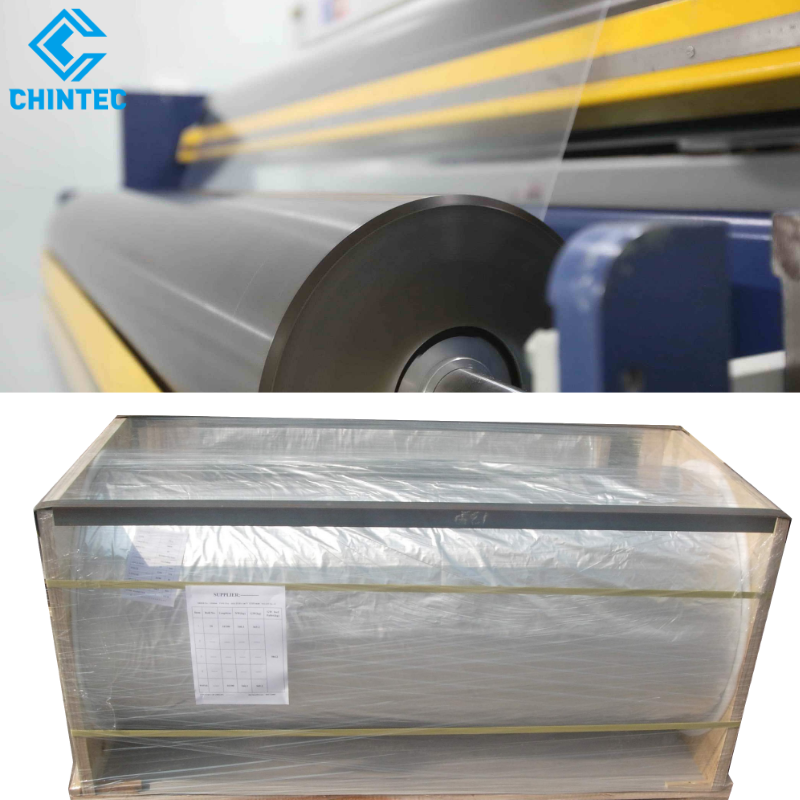

Packaging
For Core 3" (76mm inner dimension) For Core 6" (152mm inner dimension)
Aluminum foil // Plywood // Plug // Carton // Pallet // Wrapping film
9 reels per pallet
• Max pallet height 2.2m
• Weight according to roll sizes
• Measures according to roll sizes
• Available to customized service
Aluminum Foil // Plywood // Plug // Pallet // Wrapping film
 4 or 2 reels per pallet
• Max pallet height 2.1m
• Weight according to roll sizes
• Measures according to roll sizes
• Available to customized service


Tips:
• Carefully loading, avoid being crashed and prevent from rain and strong sunshine
• Stored in clean and dry places
• Well piled up, avoid being distorted or damaged by crushing
• Keep 2 meters at least away from heating objects

BOPA (Nylon) Film Thickness, Reel Size & Paper Core
Thickness (μm/micron) Reel Width(mm)         Reel Length (m)         Paper Core (inch)
10 300-2100 9000/18000/32000 3 (76mm) / 6 (152mm)
12 300-2100 7500/15000/22500 3 (76mm) / 6 (152mm)
13.5 300-2100 6500/13000 3 (76mm) / 6 (152mm)
15 300-2100 6000/12000/24000 3 (76mm) / 6 (152mm)
20 300-2100 4000/8000 3 (76mm) / 6 (152mm)
25 300-2100 4000/8000 3 (76mm) / 6 (152mm)
30 300-2100 4000/8000 3 (76mm) / 6 (152mm)

Shipping & Delivery
• Seaport: Xiamen, Shanghai, Shenzhen, etc.
• Airport: Xiamen, Shanghai, Guangzhou, etc.

FAQ
About Sample About Order About After-sale-service
• Free samples for testing
• Roll sized 300mm x 50m, or by sheet A4
• Special requirement accepted
• Courier freight afforded by the receiver and
will be refunded from the first order
• For saving the cost, prepaid is recommended

• Min. Order Quantity: 2 tonnes (2,000kgs)
• Mixed roll width and length accepted
• Delivery in 25 days for a 40HQ
• Payment Terms: T/T, L/C
• Price Terms: EXW, FOB, CNF, CIF


• In case any bad quality rolls must be compensated
• Quality guaranteed in 9 months
