Home > Vacuum Metallised Film

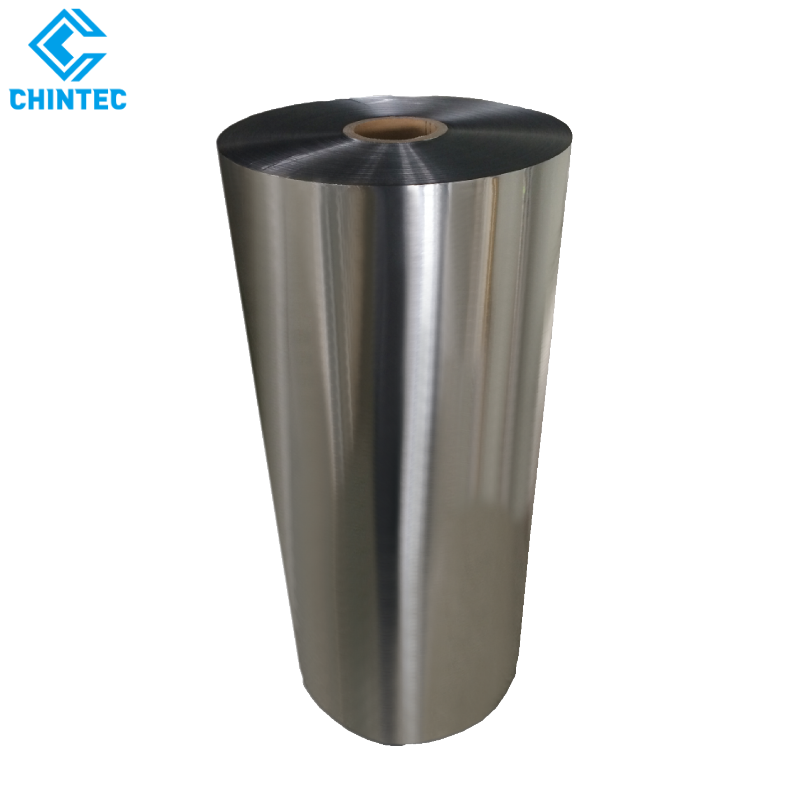

High Gloss Corona Treated Vacuum Metallised BOPP Film, Available with Standard and Heat Sealable VMOPP Films

Item No.: VMF2J63BPP01J
● Leading Manufacturer ● Premium Quality ● Good Price
Product parameters
Place of Origin: China
Processing Technology: Vacuum Metallizing
Material: biaxially-oriented polypropylene (BOPP) film
Price: Negotiable
Min. Order Quantity: 2MTs (2,000.00kgs)
Supply Ability: 5,000MTs/month
Delivery Lead: 25 days
Certification: FDA, RoHS, REACH, MSDS
Description → Specifications & Data → Packaging & Shipping → FAQ & More
Vacuum Metallised BOPP Film is produced by coating a thin layer of metal aluminum on the surface of BOPP (biaxially-oriented polypropylene) film by the process method of vacuum aluminum plating, which is passed through high temperature under a high vacuum. The metal aluminum is melted and evaporated so that the vapor of aluminum is deposited on the surface of BOPP film, then the surface of the plastic film has a metallic luster.

The VMBOPP film has an ultra-high barrier against oxygen and moisture that can be used as a cold seal layer and as a part of a lamination layer for high-quality confectionery wrappers and bakery overwraps.
It possesses high gloss and is treated with a corona that helps to be a good choice for food packaging, construction decoration, flower wrapping, and gift packaging after being embossed with a holographic pattern.
In addition, it is more cost-saving and durable when compared with other types of metallised films.

There is a wide range of vacuum metallised opp film: glossy or matte finish, plain or heat-sealable function.

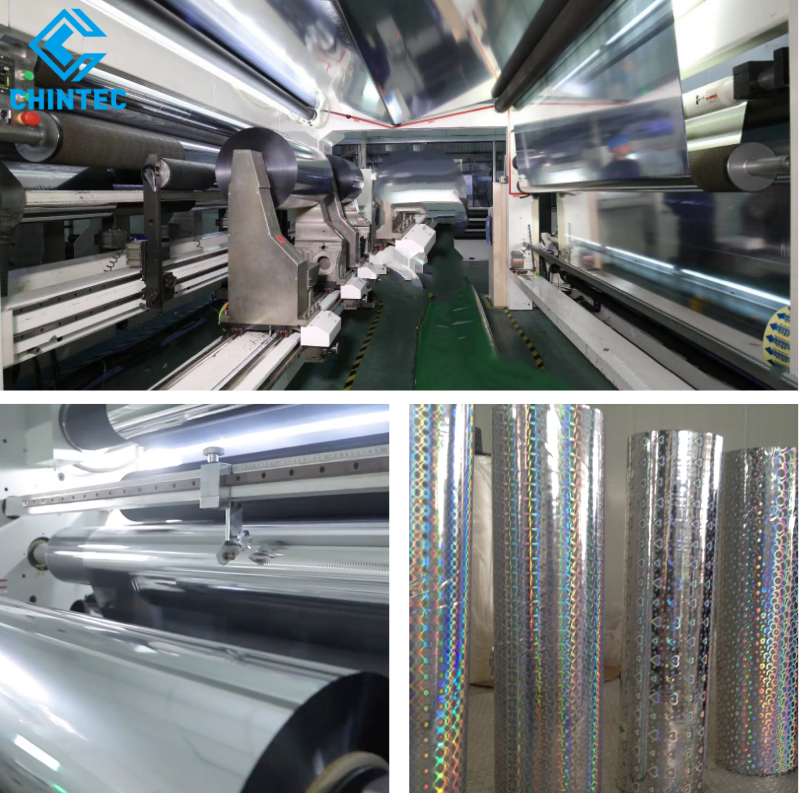

As a leading professional China Vacuum Metallised BOPP Film manufacturer, Chintec is holding a monthly capacity of 5,000 MTs, powered with 16 metallizing and coating producing lines of brands of Leybold, Applied Materials, and Daily, yielding thickness from 12μm to 50μm.

We are committed to serving a very good price Vacuum Metallised Biaxially-oriented Polypropylene Films while maintaining high product quality.
The certificates our product granted include FDA, MSDS, RoHS, REACH, and so on.



Materials: biaxially-oriented polypropylene (BOPP) film
Thickness: 12micron ~ 50micron
Inner Core: 3" (76mm), 6" (152mm)
Reel Width: 300mm ~ 2500mm
Reel Length: 3000m ~ 18000m (upon thickness)
Thickness of Alu. Layer: 360 ~ 460 Å, OD 1.8 ~ 2.3μm, 1.5 ~ 2.0 Ω/□
Application: packagings of food, gift; paper laminating; labels;
construction decoration;
flower wrapping; stickers;
Shelf Life: 12 months

● Printing, Heat Sealable, Lamination Grade
● Good Resistance & Printing Performance
● Heat Sealing for Bag Making
● High Uniformity & Gloss

● Lower Cost
● Good Adhesion Ability
● Simplify the Structures
● Easy Tear Performance

Storage Guide

1. Avoid direct sunlight or drenching
2. Avoid impact
                                                 3. Store below 25℃
                                                 4. Humidity below 65% RH

Types of Aluminum Vacuum Metallised Film

Vacuum Metallised Biaxially-oriented Polyester Film
( VMBOPET Film )
Vacuum Metallised Casting Polypropylene Film
( VMCPP Film )
Download Technical Data Sheet Download Technical Data Sheet
Features Applications Features Applications
● Environmentally-friendly, No Odor
Nor Toxicity
● High Barrier to Water Vapor and Gas
● Good Stiffness & Bonding Strength
● Heat, Sound & Shielding Insulation
● Excellent Metallic Appearance
● Anti-radiation & Anti-vibration
● Fire Retardant & Dust Free

● Food Packaging
● Paper Lamination
● Textile Ornaments
● Medicine Packaging
● Architecture Insulation

● Good Optimal Performance on
High-speed Printing
● Good Resistance to Moisture, Oil
& Grease
● High Barrier to Water Vapor and Gas
● Excellent Gloss & Transparency
● Good Extension & Flexibility
● Good Heat Seal Property
● Low Static
● Barrier Layer
● Heat Sealing Layer
● Medicine Packaging
● Compound Food Packaging
● Laminated with BOPP & BOPET

Typical Thickness Get More... Typical Thickness Get More...
● 10, 12, 16, 23, 50, 100, 150micron ● 20, 25, 30, 35, 40micron
Vacuum Metallised Biaxially-oriented Polypropylene Film
( VMBOPP Film )
Vacuum Metallised Casting Polyethylene Film
( VMCPE Film )
Download Technical Data Sheet Download Technical Data Sheet
Features Applications Features Applications
● Printing, Heat Sealable, Lamination
● Good Resistance & Printing
● Heat Sealing for Bag Making
● High Uniformity & Gloss
● Easy Tear Performance
● Simplify the Structures
● Good Adhesion Ability
● Lower Cost
● Labels
● Stickers
● Gift Packaging
● Flower Packaging
● Construction Decoration
● Delicate Food Packaging

● Excellent Heat Sealing Performance
● Uniform Aluminum Layer Thickness
● Excellent Cold Resistance
● Good Appearance Quality
● Easy Release
● Anti-aging

● Coffee Bags
● Frozen Food Bags
● Preserved Fruits Bags
● Liquid Detergent Packagings
● Daily Necessities Packagings
● Label & Medicine Packagings

Typical Thickness Get More... Typical Thickness Get More...
● 15, 18, 20, 25, 30, 35, 40micron ● 18, 25, 40, 50, 75, 100micron
Vacuum Metallised Biaxially-oriented Polyamide Nylon Film
Vacuum Metallised Non-woven Fabric
Download Technical Data Sheet Download Technical Data Sheet
Features Applications Features Applications
● Excellent Permeability to Light,
Water & Oxygen
● Strong Aluminum Coating Adhesion
● High Gloss Mirror Appearance
● Extend Food Shelf Life
● Higher Toughness
● Heat Sealable
● Balloons
● Snack Foods
● Christmas Tinsels
● Frozen Vegetable
● Electronic Materials
● Coffee, Tea & Candy
● Sterilized Medical Products
● Light and Heat Reflection
● Heat Insulation
● Soft & Flexible

● Filter Net Layer
● Interlayer of Ice Bags
● For Roof, Wall & Pipe
● Heat Insulation Material
● Frozen Packaging Material

Typical Thickness Get More...   Get More...
● 10, 12, 15, 25micron
For Core 3" (76mm inner dimension) For Core 6" (152mm inner dimension)

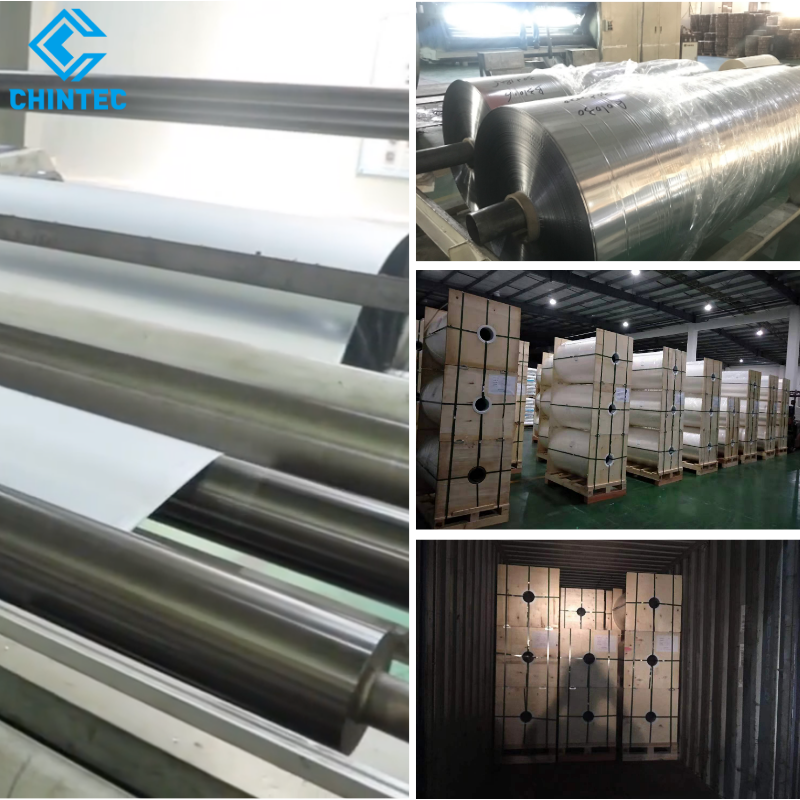

• Overwrapping film, stretched pallet
• 4/6/9 reels per pallet
• Max pallet height 2.2m
• Weight according to roll sizes
• Measures according to roll sizes
• Available to customized service
• Suspending/Floating Pallet
 2 or 4 reels per pallet
• Max pallet height 2.1m
• Weight according to roll sizes
• Measures according to roll sizes
• Available to customized service

• Carefully loading, avoid being crashed and prevent from rain and strong sunshine
• Stored in clean and dry places
• Well piled up, avoid being distorted or damaged by crushing
• Keep 2 meters at least away from heating objects
Shipping & Delivery
• Seaport: Xiamen, Shanghai, Shenzhen, etc.
• Airport: Xiamen, Shanghai, Guangzhou, etc.
About Sample About Order About After-sale-service
• Free samples for testing
• Roll sized 300mm x 100m, or by sheet A4
• Special requirement accepted
• Courier freight afforded by the receiver and
will be refunded from the first order
• For saving the cost, prepaid is recommended
• Min. Order Quantity: 2MTs (2,000kgs)
• Mixed roll width and length accepted
• Delivery lead in 25 days for a 40HQ
• Payment Terms: T/T, L/C
• Price Terms: EXW, FOB, CNF, CIF

• In case any bad quality rolls must be compensated
• Quality guaranteed in 12 months


More Bio-based Plastics & Petroleum-based Plastic Films

BOPLA (Biaxially-oriented Polylactic Acid) Film BOPP (Biaxially-oriented Polypropylene) Film

BOPLA Film is a bio-based biodegradable film, which is of compostable plastics.

Compared with petroleum-based plastics, its biodegradation can be achieved by compost in natural conditions.

When being disposed of, BOPLA film will be turned into organic biomass and water, free of toxins.

BOPP Film is one of the most popular flexible plastic packaging films, widely used for various wrapping, heat sealable, packaging, printing, lamination, and metallization.
As a professional BOPP Film China manufacturer, we are holding 8 Bruckner producing lines with a monthly capacity of 20,000 tons.
Get More... Get More...
POF (Polyolefin) Film CPP (Casting Polypropylene) Film
The heat shrink wrap clear POF film sees high clarity, good shrinkage, and superior seal strength.
A target product shall be automatically sealed and shrunk when being put into the shrink packing machine after it is put into the shrinking packaging film.
The CPP Film, a cast polypropylene film, is also called an unstretched polypropylene film.
As a professional CPP Film China manufacturer, we are holding a monthly capacity of 4,000 MTs out of 6 high-speed lines, yielding thickness from 18μm to 120μm.
Get More... Get More...
BOPET (Biaxially-oriented Polyester) Film BOPA (Biaxially-oriented Polyamide) Nylon Film
BOPET film's tensile strength is three times of PC film and nylon film, and the impact strength is 3 to 5 times of BOPP film, more excellent wear resistance, folding resistance, pinhole resistance, and tear resistance.
Heat shrinkage is as extremely low as 120 ° C below, shrinkage rate 1.25% only after 15 minutes.
BOPA film, Biaxially-oriented Polyamide Film, is made from raw material polycaprolactam, also known as nylon 6 or PA6.
In view of the exceptional strength and barrier properties, BOPA film is widely used for daily usage chemicals, electronics, food freshening and medicine package, etc.
Get More... Get More...
PE (Polyethylene) Film PLA (Polylactic Acid) Film
As a professional Polyethylene PE Film China manufacturer, we are holding several multi-layer co-extrusion lines with a monthly capacity of 3,500 metric tonnes, serving thickness from 0.01mm (10micron) to 0.18mm (180micron), for the various applications... PLA polylactic acid Film, a compostable biodegradable film, is made from corn, cassava, and other crops. We are committed to serving very good price PLA film while maintaining high product quality, certificated EN13432, ASTM D 6400, and OK Compost logo.
Get More... Get More...
Vacuum Metallised Film Synthetic Paper
Vacuum Metallised film, coated with a thin
layer of metal aluminum is an ideal composite flexible packaging material.
Our vacuum metallised film covers high barrier ALOx Metallised Film, VMBOPET Film, VMBOPP Film, VMBOPA Film, VMCPP Film, VMCPE Film, VM Non-woven Fabric, yielding thickness from 7μm to 250μm.
Synthetic Paper is a special plastic paper featured waterproof and tear-resistant, widely used to labels, hangtag, sticker, in-mold labels, etc.
We hold a monthly capacity of 5,000 MTs out of 2 high-speed producing lines of ESOPP, yielding thickness from 60μm to 500μm.
Get More... Get More...
