Home > Vacuum Metallised Film
Products

Good Heat Sealing Performance Strong Adhesion Strength VMCPP Film Aluminum Vacuum Metallised CPP Film

Item No.: VMF2J62CPP01J
● Leading Manufacturer ● Premium Quality ● Good Price
Product parameters
Place of Origin: China
Processing Technology: Vacuum Metallizing
Material: casting polypropylene (CPP) film
Price: Negotiable
Min. Order Quantity: 2MTs (2,000.00kgs)
Supply Ability: 5,000MTs/month
Delivery Lead: 25 days
Certification: FDA, RoHS, REACH, MSDS
INQUIRY
Description → Specifications & Data → Packaging & Shipping → FAQ & More

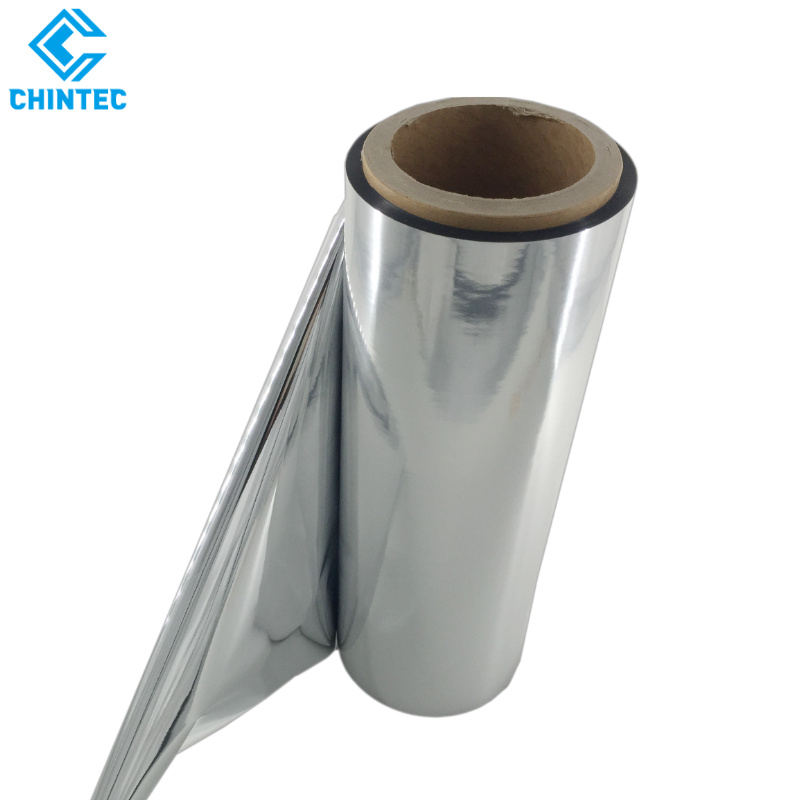

Vacuum Metallised CPP Film is produced by coating the layer of metal aluminum on the base of casting polypropylene film. It has an excellent metallic gloss, high adhesion strength, good flavor retention, good barrier to oxygen and humidity.
It is one side corona treated, and another side is a heat sealing layer, usually composite with BOPP or PET film for making packaging bags for biscuit, tea, coffee, puff food, and medicine. As an inner layer, it plays the role of barrier and heat sealing.
VMCPP film has a heat-sealable temperature of 120℃, with excellent heat sealing strength.

Vacuum metalizing film is formed by coating a thin layer of metal aluminum on the surface of a plastic film by a special process. The most commonly used processing method is vacuum aluminum plating, which is passed through high temperature under a high vacuum. The metal aluminum is melted and evaporated so that the vapor of aluminum is deposited on the surface of the plastic film, then the surface of the plastic film has a metallic luster.

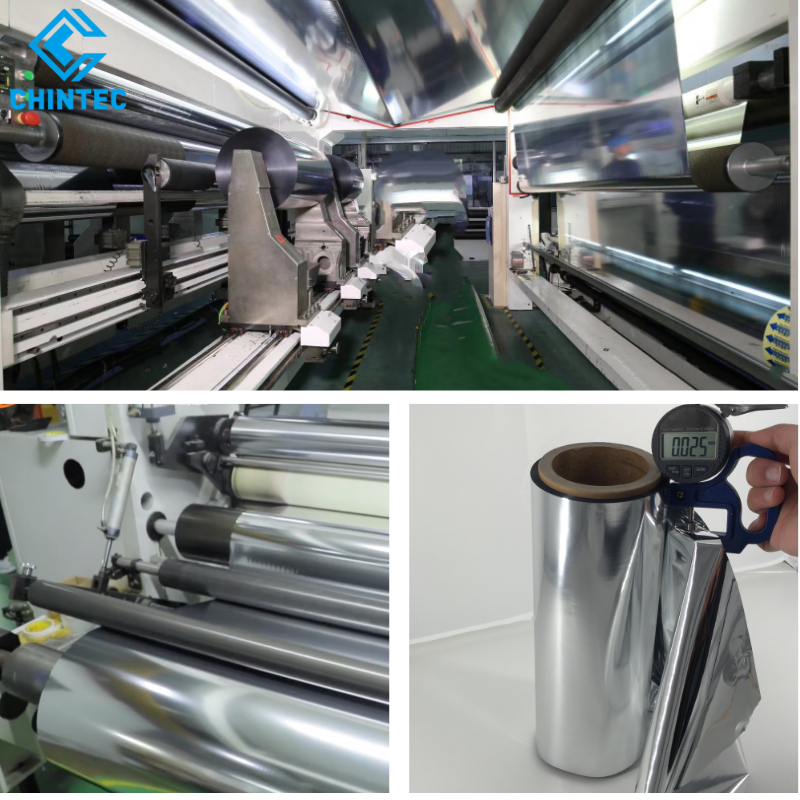

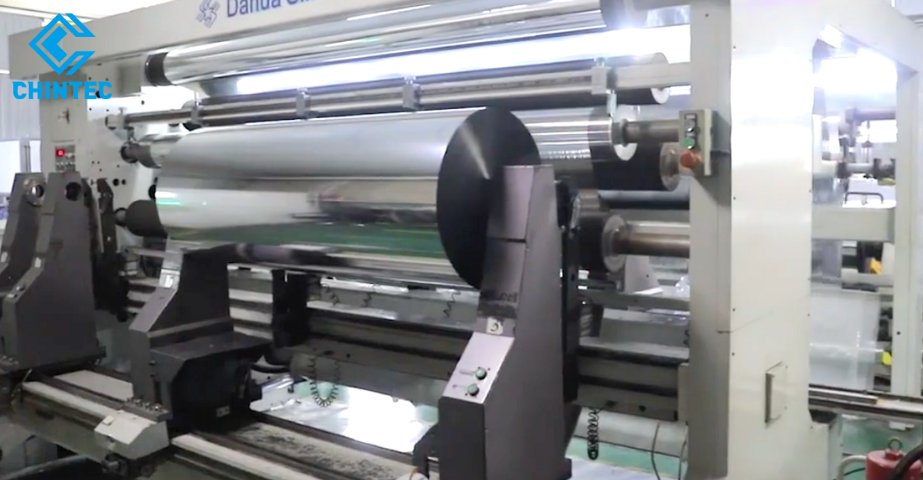

As a leading professional China Vacuum Metallised CPP Film manufacturer, Chintec is holding a monthly capacity of 5,000 MTs, powered with 16 metallizing and coating producing lines of brands of Leybold, Applied Materials, and Daily, yielding thickness from 18μm to 40μm.

We are committed to serving a very good price Vacuum Metallised Biaxially-oriented Polyester Films while maintaining high product quality.
The certificates our product granted include FDA, MSDS, RoHS, REACH, and so on.



Specifications


Materials: casting polypropylene (CPP) film
Thickness: 18 ~ 40micron (72 ~ 160 gauge)
Inner Core: 3" (76mm), 6" (152mm)
Reel Width: 200mm ~ 2500mm
Reel Length: 3000m ~ 36000m (upon thickness)
Thickness of Alu. Layer: 400 ~ 440 Å, OD 1.8 ~ 2.2μm, 1.5 ~ 2.5 Ω/□
Application: packaging for biscuit, candy, coffee, dry food
packaging for medicine, flavor, fragrance
Shelf Life: 12 months

Characteristics

● Good Optimal Performance on High-speed Printing
● Good Resistance to Moisture, Oil & Grease
● High Barrier to Water Vapor and Gas


● Low Static
● Good Heat Seal Property
● Good Extension & Flexibility
● Excellent Gloss & Transparency


Storage Guide

1. Avoid direct sunlight or drenching
2. Avoid impact

                                                 3. Store below 25℃
                                                 4. Humidity below 65% RH



Types of Aluminum Vacuum Metallised Film

Vacuum Metallised Biaxially-oriented Polyester Film
( VMBOPET Film )
Vacuum Metallised Casting Polypropylene Film
( VMCPP Film )
Download Technical Data Sheet Download Technical Data Sheet

Features Applications Features Applications
● Environmentally-friendly, No Odor
Nor Toxicity
● High Barrier to Water Vapor and Gas
● Good Stiffness & Bonding Strength
● Heat, Sound & Shielding Insulation
● Excellent Metallic Appearance
● Anti-radiation & Anti-vibration
● Fire Retardant & Dust Free



● Food Packaging
● Paper Lamination
● Textile Ornaments
● Medicine Packaging
● Architecture Insulation






● Good Optimal Performance on
High-speed Printing
● Good Resistance to Moisture, Oil
& Grease
● High Barrier to Water Vapor and Gas
● Excellent Gloss & Transparency
● Good Extension & Flexibility
● Good Heat Seal Property
● Low Static

● Barrier Layer
● Heat Sealing Layer
● Medicine Packaging
● Compound Food Packaging
● Laminated with BOPP & BOPET





Typical Thickness Get More... Typical Thickness Get More...
● 10, 12, 16, 23, 50, 100, 150micron ● 20, 25, 30, 35, 40micron

Vacuum Metallised Biaxially-oriented Polypropylene Film
( VMBOPP Film )
Vacuum Metallised Casting Polyethylene Film
( VMCPE Film )
Download Technical Data Sheet Download Technical Data Sheet

Features Applications Features Applications
● Printing, Heat Sealable, Lamination
Grade
● Good Resistance & Printing
Performance
● Heat Sealing for Bag Making
● High Uniformity & Gloss
● Easy Tear Performance
● Simplify the Structures
● Good Adhesion Ability
● Lower Cost

● Labels
● Stickers
● Gift Packaging
● Flower Packaging
● Construction Decoration
● Delicate Food Packaging





● Excellent Heat Sealing Performance
● Uniform Aluminum Layer Thickness
● Excellent Cold Resistance
● Good Appearance Quality
● Easy Release
● Anti-aging





● Coffee Bags
● Frozen Food Bags
● Preserved Fruits Bags
● Liquid Detergent Packagings
● Daily Necessities Packagings
● Label & Medicine Packagings





Typical Thickness Get More... Typical Thickness Get More...
● 15, 18, 20, 25, 30, 35, 40micron ● 18, 25, 40, 50, 75, 100micron

Vacuum Metallised Biaxially-oriented Polyamide Nylon Film
( VMBOPA/VMNY Film)
Vacuum Metallised Non-woven Fabric
Download Technical Data Sheet Download Technical Data Sheet

Features Applications Features Applications
● Excellent Permeability to Light,
Water & Oxygen
● Strong Aluminum Coating Adhesion
● High Gloss Mirror Appearance
● Extend Food Shelf Life
● Higher Toughness
● Heat Sealable
● Balloons
● Snack Foods
● Christmas Tinsels
● Frozen Vegetable
● Electronic Materials
● Coffee, Tea & Candy
● Sterilized Medical Products
● Light and Heat Reflection
● Heat Insulation
● Soft & Flexible




● Filter Net Layer
● Interlayer of Ice Bags
● For Roof, Wall & Pipe
● Heat Insulation Material
● Frozen Packaging Material



Typical Thickness Get More...   Get More...
● 10, 12, 15, 25micron

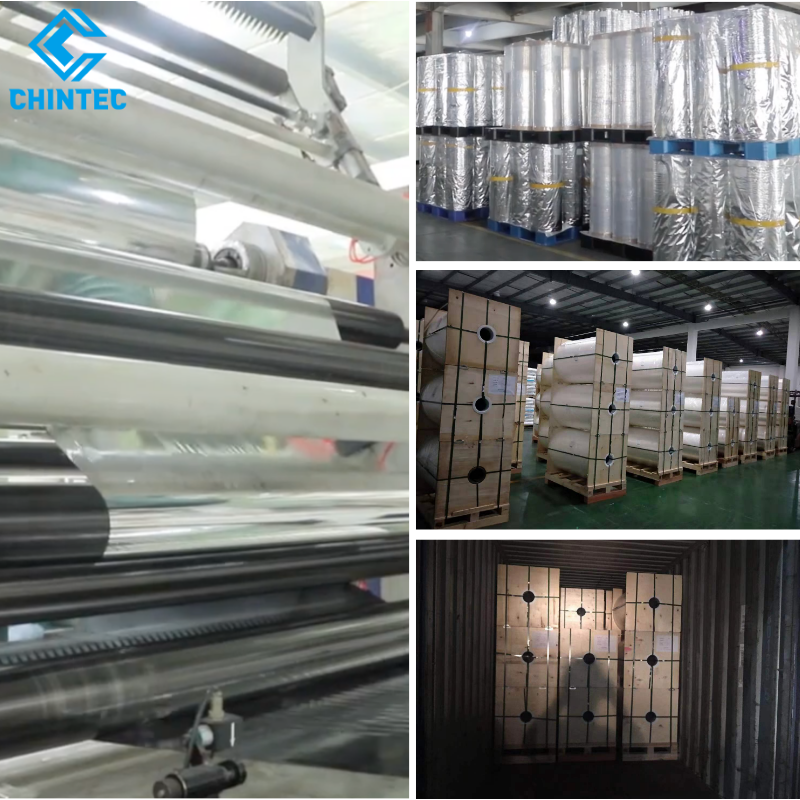

Packaging
For Core 3" (76mm inner dimension) For Core 6" (152mm inner dimension)
• Overwrapping film, stretched pallet
• 4/6/9 reels per pallet
• Max pallet height 2.2m
• Weight according to roll sizes
• Measures according to roll sizes
• Available to customized service
• Suspending/Floating Pallet
 2 or 4 reels per pallet
• Max pallet height 2.1m
• Weight according to roll sizes
• Measures according to roll sizes
• Available to customized service


Tips:
• Carefully loading, avoid being crashed and prevent from rain and strong sunshine
• Stored in clean and dry places
• Well piled up, avoid being distorted or damaged by crushing
• Keep 2 meters at least away from heating objects

Shipping & Delivery
• Seaport: Xiamen, Shanghai, Shenzhen, etc.
• Airport: Xiamen, Shanghai, Guangzhou, etc.

FAQ
About Sample About Order About After-sale-service
• Free samples for testing
• Roll sized 300mm x 100m, or by sheet A4
• Special requirement accepted
• Courier freight afforded by the receiver and
will be refunded from the first order
• For saving the cost, prepaid is recommended

• Min. Order Quantity: 2MTs (2,000kgs)
• Mixed roll width and length accepted
• Delivery lead in 25 days for a 40HQ
• Payment Terms: T/T, L/C
• Price Terms: EXW, FOB, CNF, CIF


• In case any bad quality rolls must be compensated
• Quality guaranteed in 12 months
