Aluminum Vapor Deposited Good Layer Thickness Uniformity Metallised Plastic Film

Item No.: VMFK6301K
● Leading Manufacturer ● Premium Quality ● Good Price
Product parameters
Place of Origin: China
Processing Technology: Vacuum Metallizing
Material: BOPET, BOPP, BOPA, Nylon, CPP, CPE
Price: Negotiable
Min. Order Quantity: 2MTs (2,000.00kgs)
Supply Ability: 5,000MTs/month
Delivery Lead: 25 days
Certification: FDA, RoHS, REACH, MSDS
INQUIRY
Description → Specifications & Data → Packaging & Shipping → FAQ & More
Metallised Plastic Film refers to VMPET, VMOPP, VMCPP, VMNY, and VMCPE films.
They are a kind of composite flexible packaging material formed by coating a thin layer of metal aluminum on the surface of a plastic film by a special process. The most commonly used processing method is vacuum aluminum plating, which is passed through high temperature under a high vacuum. The metal aluminum is melted and evaporated so that the vapor of aluminum is deposited on the surface of the plastic film, then the surface of the plastic film has a metallic luster. Because it has the characteristics of both plastic film and metal, it is a cheap and beautiful packaging material with excellent performance and practicality.

Metallised Plastic Film is widely used in food and medicine packaging, decoration as a protective layer, textile and clothing, and architecture as insulation or protective layer.

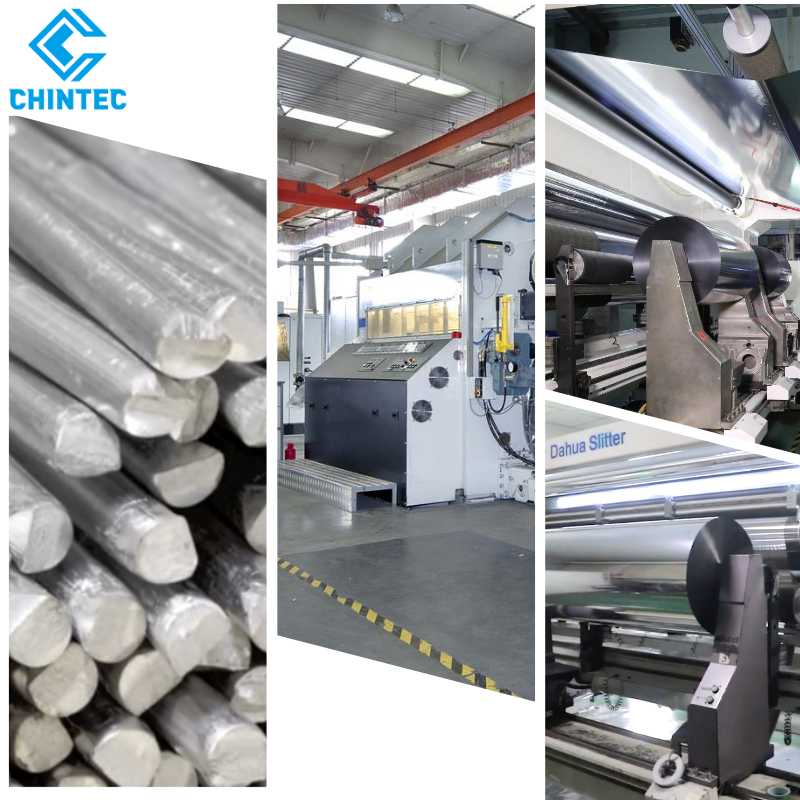

As a leading professional China Metallised Plastic Film manufacturer, Chintec is holding a monthly capacity of 5,000 MTs, powered with 16 metallizing and coating producing lines of brands of Leybold, Applied Materials, and Daily.
Our vacuum metallised film range covers High Barrier ALOx Metallized Film, Metallized BOPET Film, Metallized BOPP Film, Metallized BOPA Film, Metallized CPP Film, Metallized CPE Film, Metallised Non-woven Fabric, yielding thickness from 7μm to 250μm.

We are committed to serving a very good price Metallised Plastic Films while maintaining high product quality.
The certificates our product granted include FDA, MSDS, RoHS, REACH, and so on.



Specifications


Materials: BOPET, BOPP, BOPA, CPP, CPE
Thickness: 7micron ~ 250micron
Inner Core: 3" (76mm), 6" (152mm)
Reel Width: 300mm ~ 3100mm
Reel Length: 3000m ~ 36000m (upon thickness)
Outer Diameter: ≤ 800mm
Application: packaging, printing, laminating, decorating, protection
Shelf Life:

12 months


Characteristics

● Good Adhesion and Brightness
● Excellent Metallic Appearance
● High Heat-sealable Property


● Strong Barrier Performance
● Good Strength and Stiffness
● Good Cold and Heat Resistance


Storage Guide

1. Avoid direct sunlight or drenching
2. Avoid impact

                                                 3. Store below 25℃
                                                 4. Humidity below 65% RH

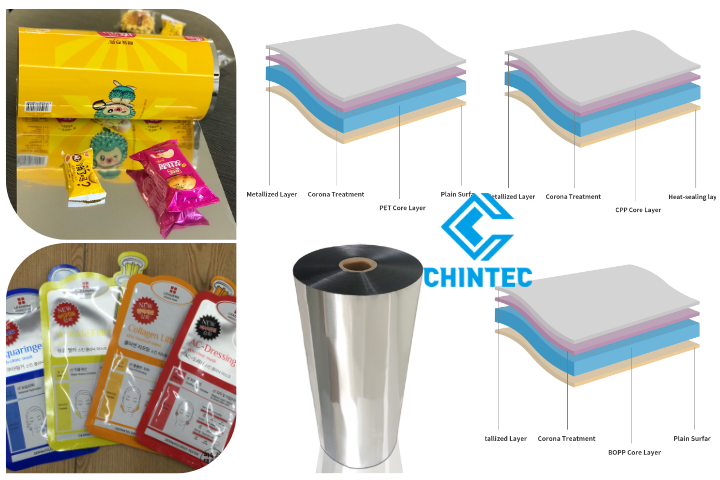

Types of Aluminum Vacuum Metallised Film

Vacuum Metallised Biaxially-oriented Polyester Film
( VMBOPET Film )
Vacuum Metallised Casting Polypropylene Film
( VMCPP Film )
Download Technical Data Sheet Download Technical Data Sheet

Features Applications Features Applications
● Environmentally-friendly, No Odor
Nor Toxicity
● High Barrier to Water Vapor and Gas
● Good Stiffness & Bonding Strength
● Heat, Sound & Shielding Insulation
● Excellent Metallic Appearance
● Anti-radiation & Anti-vibration
● Fire Retardant & Dust Free



● Food Packaging
● Textile Ornaments
● Medicine Packaging
● Architecture Insulation







● Good Optimal Performance on
High-speed Printing
● Good Resistance to Moisture, Oil
& Grease
● High Barrier to Water Vapor and Gas
● Excellent Gloss & Transparency
● Good Extension & Flexibility
● Good Heat Seal Property
● Low Static

● Barrier Layer
● Heat Sealing Layer
● Medicine Packaging
● Compound Food Packaging
● Laminated with BOPP & BOPET





Typical Thickness Get More... Typical Thickness Get More...
● 10, 12, 16, 23, 50, 100, 150micron ● 20, 25, 30, 35, 40micron

Vacuum Metallised Biaxially-oriented Polypropylene Film
( VMBOPP Film )
Vacuum Metallised Casting Polyethylene Film
( VMCPE Film )
Download Technical Data Sheet Download Technical Data Sheet

Features Applications Features Applications
● Printing, Heat Sealable, Lamination
Grade
● Good Resistance & Printing
Performance
● Heat Sealing for Bag Making
● High Uniformity & Gloss
● Easy Tear Performance
● Simplify the Structures
● Good Adhesion Ability
● Lower Cost

● Labels
● Stickers
● Gift Packaging
● Flower Packaging
● Construction Decoration
● Delicate Food Packaging





● Excellent Heat Sealing Performance
● Uniform Aluminum Layer Thickness
● Excellent Cold Resistance
● Good Appearance Quality
● Easy Release
● Anti-aging





● Coffee Bags
● Frozen Food Bags
● Preserved Fruits Bags
● Liquid Detergent Packagings
● Daily Necessities Packagings
● Label & Medicine Packagings





Typical Thickness Get More... Typical Thickness Get More...
● 15, 18, 20, 25, 30, 35, 40micron ● 18, 25, 40, 50, 75, 100micron

Vacuum Metallised Biaxially-oriented Polyamide Nylon Film
( VMBOPA/VMNY Film)
Vacuum Metallised Non-woven Fabric
Download Technical Data Sheet Download Technical Data Sheet

Features Applications Features Applications
● Excellent Permeability to Light,
Water & Oxygen
● Strong Aluminum Coating Adhesion
● High Gloss Mirror Appearance
● Extend Food Shelf Life
● Higher Toughness
● Heat Sealable
● Balloons
● Snack Foods
● Christmas Tinsels
● Frozen Vegetable
● Electronic Materials
● Coffee, Tea & Candy
● Sterilized Medical Products
● Light and Heat Reflection
● Heat Insulation
● Soft & Flexible




● Filter Net Layer
● Interlayer of Ice Bags
● For Roof, Wall & Pipe
● Heat Insulation Material
● Frozen Packaging Material



Typical Thickness Get More...   Get More...
● 10, 12, 15, 25micron


Packaging
For Core 3" (76mm inner dimension) For Core 6" (152mm inner dimension)
• Overwrapping film, stretched pallet
• 4/6/9 reels per pallet
• Max pallet height 2.2m
• Weight according to roll sizes
• Measures according to roll sizes
• Available to customized service
• Suspending/Floating Pallet
 2 or 4 reels per pallet
• Max pallet height 2.1m
• Weight according to roll sizes
• Measures according to roll sizes
• Available to customized service


Tips:
• Carefully loading, avoid being crashed and prevent from rain and strong sunshine
• Stored in clean and dry places
• Well piled up, avoid being distorted or damaged by crushing
• Keep 2 meters at least away from heating objects

Shipping & Delivery
• Seaport: Xiamen, Shanghai, Shenzhen, etc.
• Airport: Xiamen, Shanghai, Guangzhou, etc.

FAQ
About Sample About Order About After-sale-service
• Free samples for testing
• Roll sized 300mm x 100m, or by sheet A4
• Special requirement accepted
• Courier freight afforded by the receiver and
will be refunded from the first order
• For saving the cost, prepaid is recommended

• Min. Order Quantity: 2MTs (2,000kgs)
• Mixed roll width and length accepted
• Delivery lead in 25 days for a 40HQ
• Payment Terms: T/T, L/C
• Price Terms: EXW, FOB, CNF, CIF


• In case any bad quality rolls must be compensated
• Quality guaranteed in 12 months







More Bio-based Plastics & Petroleum-based Plastic Films

BOPLA (Biaxially-oriented Polylactic Acid) Film BOPP (Biaxially-oriented Polypropylene) Film


BOPLA Film is a bio-based biodegradable film, which is of compostable plastics.

Compared with petroleum-based plastics, its biodegradation can be achieved by compost in natural conditions.

When being disposed of, BOPLA film will be turned into organic biomass and water, free of toxins.

BOPP Film is one of the most popular flexible plastic packaging films, widely used for various wrapping, heat sealable, packaging, printing, lamination, and metallization.
As a professional BOPP Film China manufacturer, we are holding 8 Bruckner producing lines with a monthly capacity of 20,000 tons.
Get More... Get More...

POF (Polyolefin) Film CPP (Casting Polypropylene) Film

The heat shrink wrap clear POF film sees high clarity, good shrinkage, and superior seal strength.
A target product shall be automatically sealed and shrunk when being put into the shrink packing machine after it is put into the shrinking packaging film.

The CPP Film, a cast polypropylene film, is also called an unstretched polypropylene film.
As a professional CPP Film China manufacturer, we are holding a monthly capacity of 4,000 MTs out of 6 high-speed lines, yielding thickness from 18μm to 120μm.

Get More... Get More...

BOPET (Biaxially-oriented Polyester) Film BOPA (Biaxially-oriented Polyamide) Nylon Film

BOPET film's tensile strength is three times of PC film and nylon film, and the impact strength is 3 to 5 times of BOPP film, more excellent wear resistance, folding resistance, pinhole resistance, and tear resistance.
Heat shrinkage is as extremely low as 120 ° C below, shrinkage rate 1.25% only after 15 minutes.
BOPA film, Biaxially-oriented Polyamide Film, is made from raw material polycaprolactam, also known as nylon 6 or PA6.
In view of the exceptional strength and barrier properties, BOPA film is widely used for daily usage chemicals, electronics, food freshening and medicine package, etc.
Get More... Get More...

PE (Polyethylene) Film PLA (Polylactic Acid) Film

As a professional Polyethylene PE Film China manufacturer, we are holding several multi-layer co-extrusion lines with a monthly capacity of 3,500 metric tonnes, serving thickness from 0.01mm (10micron) to 0.18mm (180micron), for the various applications... PLA polylactic acid Film, a compostable biodegradable film, is made from corn, cassava, and other crops. We are committed to serving very good price PLA film while maintaining high product quality, certificated EN13432, ASTM D 6400, and OK Compost logo.
Get More... Get More...

Vacuum Metallised Film Synthetic Paper

Vacuum Metallised film, coated with a thin
layer of metal aluminum is an ideal composite flexible packaging material.
Our vacuum metallised film covers high barrier ALOx Metallised Film, VMBOPET Film, VMBOPP Film, VMBOPA Film, VMCPP Film, VMCPE Film, VM Non-woven Fabric, yielding thickness from 7μm to 250μm.
Synthetic Paper is a special plastic paper featured waterproof and tear-resistant, widely used to labels, hangtag, sticker, in-mold labels, etc.
We hold a monthly capacity of 5,000 MTs out of 2 high-speed producing lines of ESOPP, yielding thickness from 60μm to 500μm.
Get More... Get More...
